Thermal mass, thermal lag, and product integrity

Your cold room alarm triggers at 3 a.m. Air temperature hits 9°C (48°F) for 12 minutes. By the time QA reviews the data, the product is quarantined, an investigation is open, and the team is burning hours on a deviation that may never have affected a single vial.

This is one of the most common – and most misunderstood – scenarios in pharmaceutical temperature monitoring. The air exceeded the limit. But did the product?

In most cases, the answer is no. And the reason is thermal mass.

Alarm fatigue and unnecessary deviations

When monitoring systems measure air temperature and apply tight thresholds without delay timers, every brief fluctuation – door openings, defrost cycles, personnel traffic – can trigger an alarm. The result can be that QA teams are desensitized to alerts because most turn out to be non-events, so-called alarm fatigue.

USP <1079.2> addresses this indirectly by defining how excursions should be evaluated using mean kinetic temperature (MKT). But the upstream problem is often simpler: the alarm fired because air spiked, while the product never left its specified range.

This is why many facilities use alarm delay timers, which are short time buffers that filter out transient air spikes before escalating to QA. The scientific justification for those delays comes from understanding the thermal mass of the products being stored.

Also read: Eupry's alarm handling system: Putting USP <1079.2> into practice

Mapping protocol design

During a temperature mapping study, the choice between air sensors and buffered sensors has a direct impact on results. Air sensors capture the full volatility of the environment, which is useful for identifying hot and cold spots and understanding HVAC behavior. But they can overstate the thermal risk to the product.

USP <1079.4> acknowledges this distinction. It states that load tests may be conducted with simulated product that should simulate the expected average thermal mass of the actual product. In other words, the standard recognizes that air temperature alone does not represent product temperature, and that your mapping design should account for that.

For GDP-compliant mapping studies, this informs decisions about sensor placement, acceptance criteria, and how mapping results translate into permanent monitoring thresholds.

Excursion risk assessment

When a genuine excursion occurs, the first question QA asks is: Did the product temperature actually leave the specified range?

If monitoring was based on air sensors only, the answer requires estimation. If buffered sensors were in use – glycol vials, thermal blocks, or similar – the data more closely represents what the product experienced. That difference can determine whether a batch is released or destroyed.

Also read: How to investigate a temperature excursion faster

Placing a temperature probe inside a glycol vial or an aluminum thermal block is a common method for simulating product thermal mass. The buffer dampens rapid air fluctuations, so the sensor reading reflects the product's actual thermal experience rather than the volatile air around it.

However, buffer selection is not straightforward. A study published in PubMed Central on thermal buffer sizing found that mismatched buffers – for example, a large glycol vial monitoring a shelf of pre-filled syringes as small as 0.25 mL – can mask real excursions or, conversely, fail to filter false alarms. The buffer should be thermally matched to the stored product.

Independent testing on aluminum probe blocks has reached a related conclusion. Probe placement inside the chamber had a larger impact on data accuracy than the choice of buffer material. Both findings point in the same direction: Thermal buffering works, but only when it is designed with the actual product in mind.

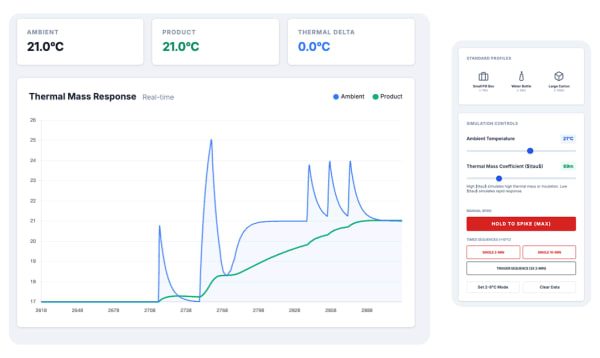

For facilities storing a range of product sizes, a single physical buffer cannot represent all of them. This is where understanding the underlying physics and being able to visualize the response curves becomes genuinely useful.

The practical takeaway is not that air temperature monitoring is wrong. Air monitoring is the standard approach, and for good reason – it is responsive, well understood, and straightforward to validate.

But understanding thermal lag gives you the scientific basis to:

• Justify alarm delay timers that filter transient air spikes without compromising product safety
• Design mapping studies that account for product thermal mass, as USP <1079.4> expects
• Evaluate excursions with a clear rationale for why an air excursion did or did not impact the product
• Select appropriate thermal buffers when buffered monitoring is warranted by your risk assessment
• Reduce unnecessary quarantines by distinguishing real product excursions from air-only events

Each of these decisions is auditable. Inspectors expect to see a documented rationale linking your alarm settings, sensor placement, and buffer choices back to the thermal characteristics of your stored products.
